GELUID

Speakon 4  (full range)
Pin1+: +
Pin1-:-
Pin2+: leeg
Pin2-: leeg
Speakon 4  (2-weg)
Pin 1+: laag +
Pin 1-: laag -
Pin 2+: hoog +
Pin 2-: hoog -

Speakon 8
Pin 1+: 4 weg sub laag +
Pin 1-: 4 weg sub laag -
Pin 2+: 4 weg laag +
Pin 2-: 4 weg laag -
Pin 3+:4 weg mid +
Pin3-: 4 weg mid -
Pin 4+: 4 weg hoog +
Pin 4- : 4 weg hoog -



Harting 108-pens, Ampco codering
  pin 3 pin 2 pin 1 pin 1 pin 2 pin 3
XLR1 1 19 37 55 73 91 XLR2
XLR3 2 20 38 56 74 92 XLR4
XLR5 3 21 39 57 75 93 XLR6
XLR7 4 22 40 58 76 94 XLR8
XLR9 5 23 41 59 77 95 XLR10
XLR11 6 24 42 60 78 96 XLR12
XLR13 7 25 43 61 79 97 XLR14
XLR15 8 26 44 62 80 98 XLR16
XLR17 9 27 45 63 81 99 XLR18
XLR19 10 28 46 64 82 100 XLR20
XLR21 11 29 47 65 83 101 XLR22
XLR23 12 30 48 66 84 102 XLR24
XLR25 13 31 49 67 85 103 XLR26
XLR27 14 32 50 68 86 104 XLR28
XLR29 15 33 51 69 87 105 XLR30
XLR31 16 34 52 70 88 106 XLR32
XLR33 17 35 53 71 89 107 XLR34
XLR35 18 36 54 72 90 108 XLR36

     blauw = pin 3  = cold
     rood   = pin2   = hot
     grijs    = pin 1  = massa

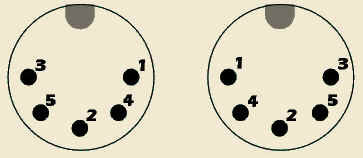

Pen 5-polige DIN voor MIDI





                                          male                           female


1 leeg
2 massa in/out/through
3 leeg
4 positive non-inverting in/out/through
5 negative inverting in/out/through



Socapex 37-polig (geluid)

male side
gezamenlijke massa
tot 12 kanalen
voor audio doeleinden
Ch.
No.		 Hot
+		 Cold
-		 Gnd.
(shield)
1 1 2 3
2 4 5 6
3 7 8 9
4 10 11 12
5 13 14 15
6 16 17 18
7 19 20 21
8 22 23 24
9 25 26 27
10 28 29 30
11 31 32 33
12 34 35 36



LICHT

            5 pin XLR for DMX 512
Pin 1        ground (screen)
Pin 2        data complement (negative inverted) conductor (usually black)
Pin 3        data true (positive non inverted) conductor (usually white)
Pin 4        spare data complement (negative inverted) conductor (green)
Pin 5        spare data true (positive non inverted) conductor (usually red)

             3 pin XLR for DMX 512
Pin 1         ground (screen)
Pin 2         data complement (negative inverted) conductor usually black)
Pin 3         data true (positive non inverted) conductor (usually white)

             3 pin XLR for High End Systems Protocol
Pin 1            shield
Pin 2            data complement (negative)
Pin 3            data true (positive)

            3 pin XLR for Martin Professional Protocol (pre MAC 600)
Pin 1              ground (screen)
Pin 2              data true (positive)
Pin 3              data complement (negative)

          3 pin XLR for MArtin Professional Protocol (MAC 600 and later  products)
Pin 1          ground (Screen)
Pin 2          data complement (negative)
Pin 3          data true (positive)

Recent Martin Professional fixtures are fitted with a set of jumpers on the main PCB that allow you to reconfigure the pinout of the data connectors. Please consult your user manual to see if your fixture has this option, and for instructions on how to change the settings.



            5 pin DIN for MIDI
Pin 1        not connected
Pin 2        ground - in / out / through
Pin 3        not connected
Pin 4        positive non inverting - in / out / through
Pin 5        negative inverting - in / out / through

            4 pin XLR for Chroma-Q colour changers
Connector   metal tab (ground) - drain wire
Pin 1            0 Volts (power) conductor, thick (usually white)
Pin 2            data true (positive non inverted) conductor (usually red)
Pin 3            data complement (negative inverted) conductor (green)
Pin 4            24 volts (power) conductor, thick (usually black)

            Socapex SL61 419AR pin out

PIN NUMMER

Kabel ader nummer

1

Kring 1 fase

2

Kring 1 nul

3

Kring 2 fase

4

Kring 2 nul

5

Kring 3 fase

6

Kring 3 nul

7

Kring 4 fase

8

Kring 4 nul

9

Kring 5 fase

10

Kring 5 null

11

Kring 6 fase

12

Kring 6 nul

13

aarde

14

aarde

15

aarde

16

aarde

17

aarde

18

aarde




BULGIN

8 POLIG

gezamenlijke aarde
Ch.
No.		 Hot
L		 Cold
N		 Gnd.
1 3 7-8 1
2 4 7-8 1
3 5 7-8 1
4 6 7-8 1
